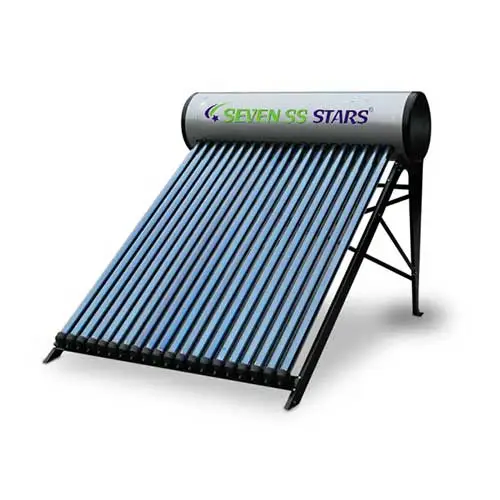

200 Liters Pressurized/ Heat-Pipe Stainless Seven SS STARS Solar Water Heater
Seven Stars Solar Water Heaters are popular high-quality solar water Heaters. They are made to last long and highly adaptive with both fresh and borehole water. They come with an inner tank made of stainless steel to work with the rising use of borehole water. For this pressurized system, pressure-in is equal to pressure-out. Pressure must be below 5 Bars.
200 Liters Pressurized/ Heat-Pipe SEVEN SS STARS Solar Water Heater Technical Data
| Tank | Outer Tank | Material: 0.4mm SUS304-2B stainless steel
Diameter: 420mm/460mm/480mm |
| InnerTank
|
Material:SUS304-2B stainless steel
Pressure Rating: 5 Bars. Diameter and Thickness:310mm/360mm/380mm(0.40/0.58mm) |
|
| Insulation Layer | 50/55/60mm high density polyurethane foam | |
| Solar Collector | Material: three target tube(SS/CU/AL-coating)
Size: Φ47x1500mm/Φ58×1800mm No of Tubes: 20 Pieces, Heat Pipes |
|
| Support Frame | Material:1.5mm import heat zinc steel plate
Installation angle: 27°, 38°, 45° |
|
